Introducion:

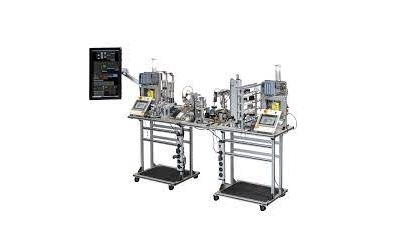

• With the mMS Sorting System Compact 4.0, you can teach automation and mechatronics from the basics to complex industrial 4.0 topics and networking in a small space.

Training Program:

The following topics can be teached with the modular Mechatronics Sorting System Compact 4.0:

• Pneumatics and E-Pneumatics
• Mechatronics
• Sensor technology
• Basics for handling industrial systems
• Industry 4.0
• PLC programming
• HMI project planning
• Network technology (wired and wireless)
• IO link
• Coding techniques in an industrial context
• RFID
• IoT
• Maintenance and troubleshooting

Technical Specification:

• 2x Pneumatic Service Unit
• 2x Magazine Unit 1
• Belt Conveyer
• Sorting Unit
• Transfer Point
• Handling Unit with vacuum suction cup
• Assembly Unit
• ASRS-Unit
• IO-Link sensors for measuring the pressure in the pneumatic system
• IO-Link LASER sensor technology for level control
• IO-Link SmartLights (optical display of the system status)
• IO-Link RFID read/write heads (access control and user management)
• RFID transponder for product tracking and control
• RFID transponder for users (access control)
• IO-Link Master (PROFINET)
• Optical sensors to monitor the slides
• Capacitive sensors for monitoring workpiece separation
• 2 SPS SIMATIC S7-1512C
• 2 colour touch panel SIMATIC TP700 COMFORT PN/DP, prepared for intuitive operation
• WLAN antennas (machine-machine communication, human-machine communication)

Option :

• Mechatronics System mMS Station Robotics UR3e (39980)
