Vickers Hardness Tester
Vicker hardness tester WIKI 200 JS4
Model: WIKI 200 JS4
Manufacturer: AFFRI
- X-Y Table: 250 x 300 mm
- Standards: ASTM E-18 / ISO 6508
- Force Range: From 15 kgf to 150 kgf
- Accuracy: Better than 0.1 %
Vicker hardness tester Wiki 30
Model: Wiki 30
Manufacturer: AFFRI
- Standards: DIN EN ISO 6506 / DIN EN ISO 6507 / ISO 4545 / ASTM E-92 /ASTM 384 / JIS Z231
- Head stroke: 90 mm (motorized)
- Force range: Vickers 0.98 - 1.961 - 2.942 - 4.903 - 9.807 - 19.61 - 29.42 - 49.03 - 61.29 - 98.07 - 147.1 - 152.98 - 196.14- 245.17 - 294.21 N (0.1 - 0.2 - 0.3 - 0.5 - 1 - 2 - 3 - 5 - 6.25 - 10 - 15 - 15.6 - 20 - 25 - 30 kgf)
- Accuracy: better than 0.5%

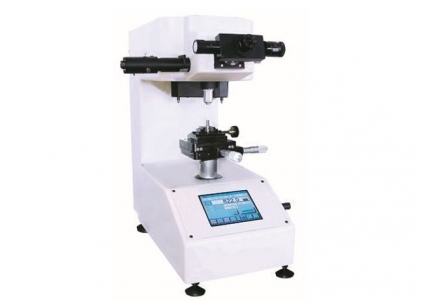

Vicker hardness tester DM-8
Model: DM-8
Manufacturer: AFFRI
- Standards: ASTM E - 384, ISO 6507-2, JIS B 7734
- Screw Stroke: 120 mm
- Depth Capacity: 160 mm
- Force Range:
- +DM-8 A (Fullt or Semi Automatic):
- Vickers - Knoop 0.049 - 0.098 - 0.245 - 0.490 N (5 - 10 - 25 - 50 gf) 0.980 - 1.961 - 2.942 - 4.903 - 9.807 N (0.1 - 0.2 - 0.5 - 1 kgf)
- +DM-8 B (Fully or Semi Automatic):
- Vickers - Knoop 0.0098 - 0.029 - 0.049 - 0.098 - 0.245 - 0.490 N (1 - 3 - 5 - 10 - 25 - 50 gf) 0.980 - 1.961 - 2.942 - 4.903 - 9.807 - 19.614 N (0.1 - 0.2 - 0.5 - 1 - 2 kgf)
- Accuracy: Better than 0.5%
