Control Engineering and Automation

Introducion:

The ideal tool for getting to know the S7-1500 control or obtaining more in-depth knowledge:

• integrated HMI display
• pushbutton/notched switches for signal input
• potentiometer for analogue value input
• can be expanded using motor control, traffic light etc.

Training Program:

• Setup and configuration of a PLC in the TIA Portal
• Commissioning an automation system
• Programming acc. to international standard IEC1131-3
• Connecting and commissioning field bus systems

Technical Specification:

Function groups:

• CPU S7-1516-3 PN/DP with the following features:
• 2 + 1 Profinet interfaces
• Profibus interface
• 32 digital inputs
• 32 digital outputs
• 8 analog inputs, 4 analog outputs
• 24MB memory card
• Touch Panel TP 700 Comfort
• 7" colour graphical display with touch function
• Profinet interface
• Profibus interface
• 5-port Profinet switch for setting up a Profinet network

mounted on:

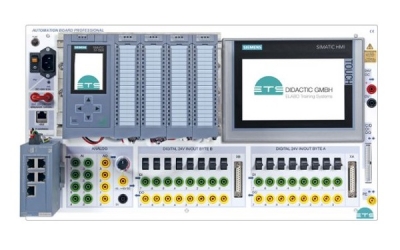

• Automation Board Professional
• with short mounting rail and internal 24V DC supply, for universal assembly with S7/1500 components and a 7" touch panel

Option :

• Bus Process Board
• AC Drive Board G120 - 3-phasig
• Servo Drive Board S120
