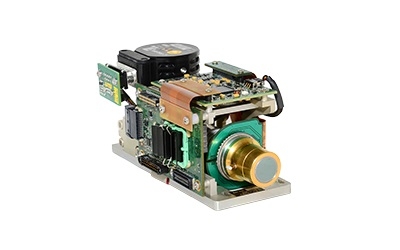

Cooled thermal imaging core

The MiTIE Miniature Thermal Imaging Engines are designed for OEMs that wish to incorporate a small,
lightweight, low power cooled camera engine into their electro-optical systems
Specifications:
 - IDDCA: Scorpio MW
 - Detector: 640×512 MCT
 - Pixel Pitch: 15 µm
 - Spectral Response: 3.7-4.8 µm
 - NETD (typical): < 18 mK
 - A/D: 14-bit
 - Cold Shield: f/2.0, f/2.24, f/4
 - Full Frame Rate: Up to 120 Hz
 - Adjustable Integration Time: < 3 µsec to 20 msec
 - Digital Output: HDMI, 14-bit Camera Link
 - Video Output: NTSC or PAL output
 - Operating Temperature Range: -40°C to +71°C
 - Available Image Processing Functions: Non-uniformity correction, BPR, frame accumulation capability (63 frames), binning, edge enhancement, AGC, histogram equalization, gamma correction, symbology, black hot/white hot, flip video, digital zoom, freeze
 - Cooler: Rotary K508
 - Power Consumption (steady-state): 12 W
 - Dimensions (W × H × L): 76× 76× 147 (mm)
Applications:
 -  UAV, Airborne, Missile, Surveillance
