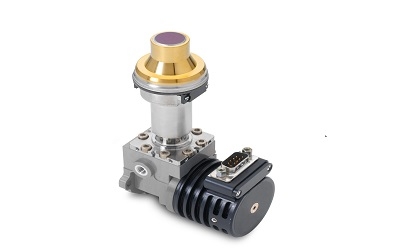

Cooled thermal imaging sensor

SIRIUS LW is offering a high resolution and a large FPA format with excellent stability and uniformity
Array features:
 - Format 640 x 512
 - Pixel pitch 20 µm x 20 µm
 - Detector spectral response λ peak: 8.5 µm / Δλ = 1 µm
 - FPA Operating temperature  Up to 73 K
ROIC:
 - ROIC architecture: Snapshot operation, direct injection input circuit, Integrate-While-Read or Integrate Then Read modes
 - Singal outputs 1, 2, 4
 - Pixel output rate Up to 10 MHz per output
 - Frame rate Up to 120 Hz full frame rate
Typical performances:
 - NETD < 33 mK @ 73 K (300 K, f/2.7, integration time < 7 ms, with full well in front of 343 K)
 - Array operability: 99.9%
 - Non uniformity (DC level and responsivity) 5% RMS (σ/mean, 300 K uncorrected performance)
 - FOV: f/2.2
 - Regulated input power: 11 WDC
 - Cooldown input power: 25 WDC
 - Power supply 24 V
 - Cooler dimensions (mm) Ø 46 x L 77
 - IDCA height (optical axis, mm) 142
 - Weight 0.66 kg
 - Operating temperature - 40° C to 71° C
Applications:
 - Ground Vehicles, Target acquisition
