Measuring Microscope

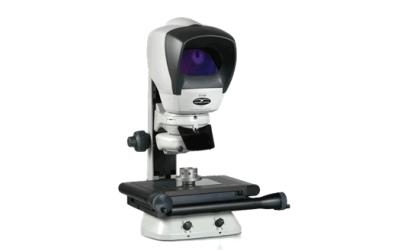

Metrology Microscope Hawk Elite
Model: Hawk Elite
Manufacturer: Vision Engineering
- Measuring range
- - Measuring range (X, Y): 150 x 150 mm
- - Measuring range (Z): 195 mm
- - Measurement accuracy: U952D = 4+(5.5L/1000)µm
- - Stage repeatability (X, Y, Z): 0.004 mm
- - Encoder resolution (X, Y, Z): 0.001, 0.001, 0.0005 mm
- Stage movement: Manual
- Illumination
- - Surface illumination: Bright white, controllable and programmable quadrant LED ringlight
- - Episcopic illumination: Controllable and programmable LED Episcopic illumination
- - Substage illumination: Controllable and programmable LED substage illumination
- Software
- - ND 1200 rugged microprocessor
- - M3 metrology software
- - IK 5300 metrology software
