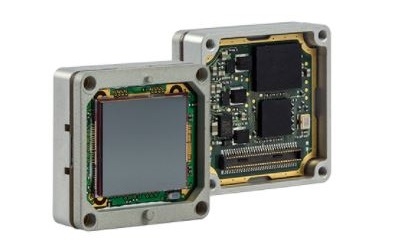

Uncooled thermal imaging core

Muon™ is a calibrated uncooled thermal camera subassembly developed for thermal product OEMs to integrate with their own image processing, packaging and optical solutions
Imaging Specifications:
 - System Type: 336 x 256,  640 x 512, VOx
 - Spectral Range: 7.5 – 15.0 µm
 - Pixel Size: 17 µm
 - NETD: <50 mK (Muon 640:< 60mK )
Outputs:
 - Digital Video: 16-bit temperature calibrated Parallel Interface video-out (CMOS)
 - Frame Rate (Full Window): 60Hz, 50Hz and <9Hz
Operations & Control:
 - Non-Uniformity Correction (NUC), Bad Pixel Replacement,
 - Camera Control: I2C communication, discrete control
 - Signal Interface: 60-pin Hirose connector
 - Telemetry Data: FPA temperature, FPA type, Frame Rate, Current NUC Table
Physical Attributes:
 - Size: 22 x 22 x 7 mm
 - Weight:  <5 grams
 - Mounting Interface: Four M1.6x0.35 threaded mounting holes
Power:
 - Input Voltage Imaging device standards: 3.3V, 2.5V, 1.8V, 1.2V
 - Power Dissipation: <300mW (336), <450mW (640) at room temperture
Environmental:
 - Operating Temperature Range: -40°C to + 80°C external temp
 - Scene Temperature Range: 50°C above and below ambient temperature
 - Mechanical Shock: 250g 1.0 msec half-sine and 500g 0.8 msec half-sine
 - Vibration: 4.3g; 3 axes, 8 hours each
 - Temperature Shock: 5°C/min
 - Humidity: 5 - 95% non-condensing
 - Operational Altitude: +40,000 feet
Applications:
 - Airborne, Handheld imagers, Security Camera, Thermal weapon sights
