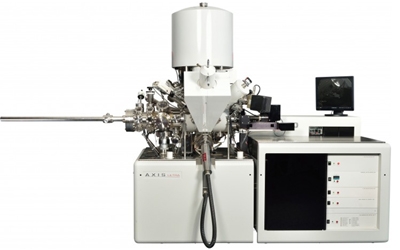

X-ray Photoelectron Spectrometer

• The first photoelectron spectrometer with a spherical mirror analyser (SMA) for fast, chemical state, parallel imaging
• The hemispherical analyser provides both high energy resolution and high sensitivity spectroscopic performance
• Delay-line detector  with over 100 detector channels
• X-ray Sources: Dual anode (Mg and Al Kα source)
• Electron energy analyser: 180° hemispherical analyser, 165mm mean radius, Spherical mirror analyser
• Small spot selected area: 110um, 55um, 27um and 15um calibrated analysis areas
• Multitechnique Capability:

SAM: Scanning Auger Microscopy Schottky Field Emission Source
ISS: Ion Scattering Spectroscopy
SIMS: Secondary Ion Mass Spectrometry (Quadrupole)
UPS: Ultraviolet Photoelectron Spectroscopy
